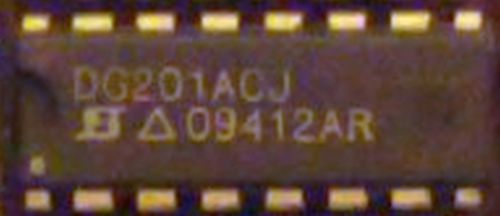

Circuit Intégré – DG201ACJ – Quad SPST, CMOS Analog Switches – DIP16 – INTERSIL

Description

Quad SPST, CMOS Analog Switches

The DG201A and DG202 quad SPST analog switches are designed using Intersil’s 44V CMOS process. These bidirectional switches are latch-proof and feature break-before-make switching. Designed to block signals up to 30VP-P in the OFF state, the DG201A and DG202 offer the advantages of low ON resistance (<=175W), wide input signal range (±15V) and provide both TTL and CMOS compatibility.
The DG201A and DG202 are specification and pinout compatible with the industry standard devices.
