LOT DE 4 EMBASES MÂLES COUDÉES POUR CI – 9 CONTACTS – PITCH 2,54mm – 22057098

4,99 €

LOT DE 4 EMBASES MÂLES COUDÉES POUR CI – 9 CONTACTS – PITCH 2,54mm – 22057098

En stock

Catégorie :

Description

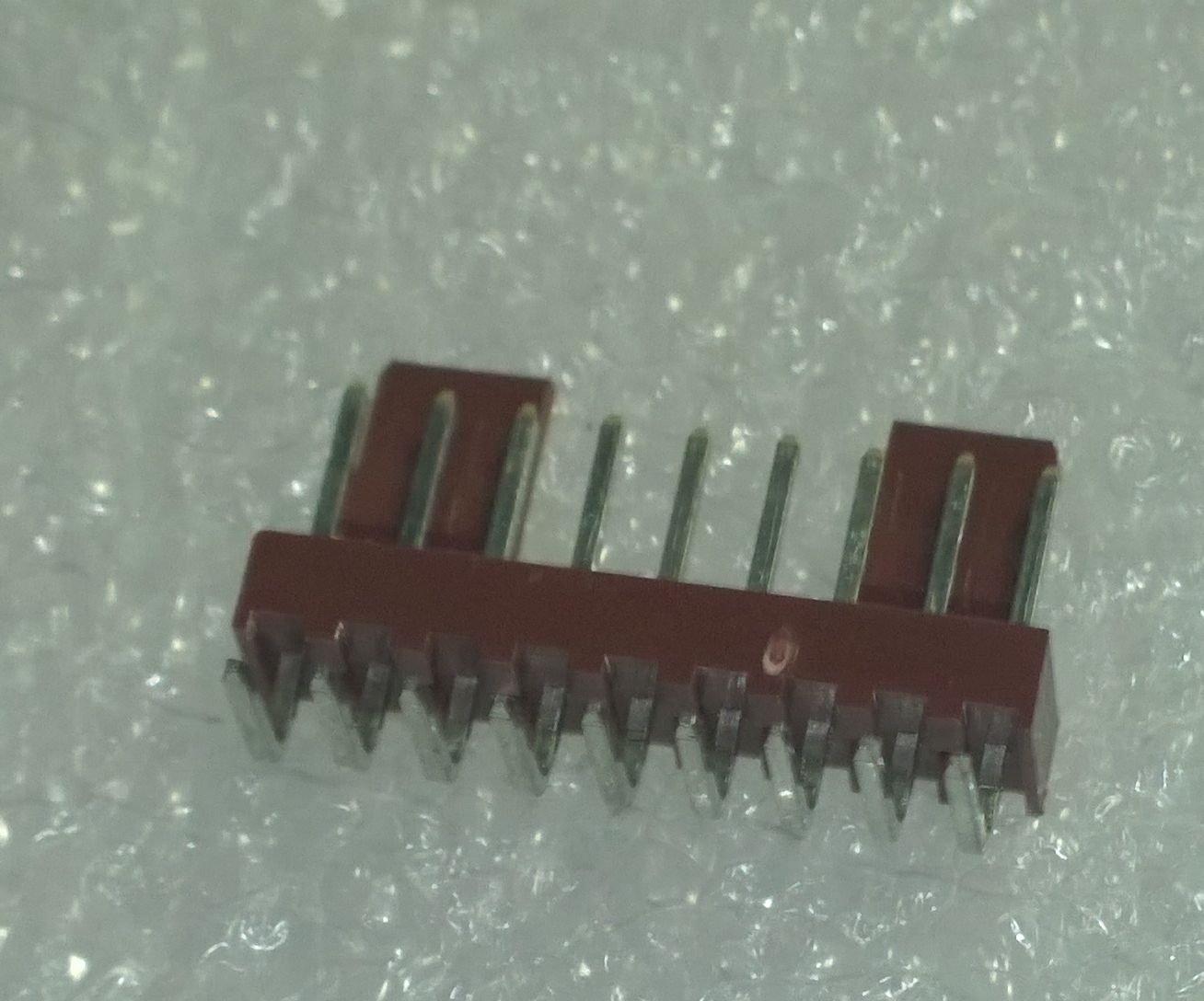

4 EMBASES MÂLES POUR CIRCUIT IMPRIMÉ
Type coudées
1 rangée de 9 contacts
Pitch 2,54 mm
Réf. 22057098
Marque : MOLEX
QUANTITÉ : 4

Agency Certification
CSA
LR19980
UL
E29179
       General
Product Family
PCB Headers
Series
7395
Application
Signal, Wire-to-Board
Overview
KK® Interconnect System – Molex
Product Name
KK® 254
UPC
800753739604
              Physical
Breakaway
No
Circuits (Loaded)
9
Circuits (maximum)
9
Color – Resin
Natural (White)
Durability (mating cycles max)
25
First Mate / Last Break
No
Flammability
   94V-0
Glow-Wire Compliant
No
Guide to Mating Part
No
Keying to Mating Part
None
Lock to Mating Part
Yes
Material – Metal
Brass
Material – Plating Mating
    Tin
Material – Plating Termination
    Tin
Material – Resin
Nylon
Net Weight
   1.112/g
Number of Rows
1
Orientation
Right Angle
   PC Tail Length
3.80mm
PCB Locator
No
PCB Retention
None
PCB Thickness – Recommended
1.60mm
 Packaging Type
Bag
Pitch – Mating Interface
2.54mm
 Pitch – Termination Interface
2.54mm
Plating min – Mating
5.080μm
 Plating min – Termination
5.080μm
Polarized to Mating Part
Yes
Polarized to PCB
No
Shrouded
No
Stackable
No
Surface Mount Compatible (SMC)
No
Temperature Range – Operating
See Product Specification
Termination Interface: Style
Through Hole


              Electrical
Current – Maximum per Contact
4.0A
Voltage – Maximum
250V
         Solder Process Data
Duration at Max. Process Temperature (seconds)
005
Lead-freeProcess Capability
      WAVE
Max. Cycles at Max. Process Temperature
001
Process Temperature max. C
235
           Material Info
Engineering Number
739509B
         Reference – Drawing Numbers
Packaging Specification
PK-7478-001
Product Specification
PS-99020-0088
Sales Drawing
SD-7395-001
